For other uses, see Merlon (disambiguation).
Merlons of Alcazaba of Almería in Almería, Spain

A merlon is the solid upright section of a battlement (a crenellated parapet) in medieval architecture or fortifications.[1] Merlons are sometimes pierced by narrow, vertical embrasures or slits designed for observation and fire. The space between two merlons is called a crenel, and a succession of merlons and crenels is a crenellation.[2] Crenels designed in later eras for use by cannons were also called embrasures.[3]

Etymology[edit]

The term merlon comes from the French language, adapted from the Italian merlone, possibly a shortened form of mergola, connected to Latin mergae (pitchfork), or from a diminutive moerulus, from murus or moerus (a wall). An alternative etymology suggests that the medieval Latin merulus (mentioned from the end of the 10th century) functioned as a diminutive of Latin merle, "blackbird", expressing an image of this bird sitting on a wall.

As part of battlements[edit]

As an essential part of battlements, merlons were used in fortifications for millennia. The best-known examples appear on medieval buildings, where battlements, though defensive, could be attractively formed, thus having a secondary decorative purpose. Some (especially later) buildings have false "decorative battlements". The two most notable European variants in Middle Ages merlons shape were the Ghibelline and the Guelph merlon: the former ended in the upper part with a swallow-tailed form, while the latter term indicates the normal rectangular shape merlons (wimperg).

Other shapes include: three-pointed, quatrefoil, shielded, flower-like, rounded (typical of Islamic and African world), pyramidal, etc., depending either from the type of attacks expected or aesthetic considerations.

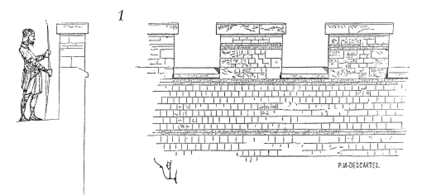

In Roman times, the merlons had a width sufficient to shelter a single man. As new weapons appeared in the Middle Ages (including crossbows and the first firearms), the merlons were enlarged and provided with loop-holes of various dimensions and shapes, varying from simply rounded to cruciform. From the 13th century, the merlons could also be used to pivot wooden shutters; these added further protection for the defenders when they were not firing, or were firing downwards near the base of the wall. The shutters, also known as mantlets, could be opened by hand, or by using a pulley.

Later use[edit]

After falling out of favour when the invention of the cannon forced fortifications to take a much lower profile, merlons re-emerged as decorative features in buildings constructed in the neo-Gothic style of the 19th century.

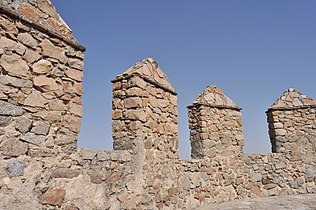

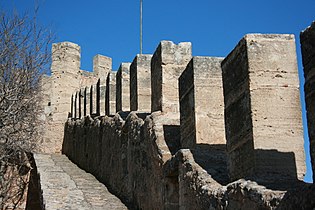

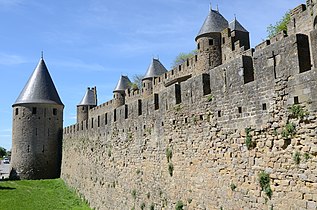

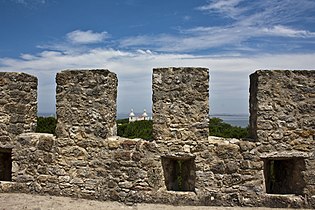

Gallery[edit]

See also[edit]

References[edit]

  1. ^ Friar, Stephen (2003). The Sutton Companion to Castles, Sutton Publishing, Stroud, 2003, p. 202. ISBN 978-0-7509-3994-2
  2. ^ J. E. Kaufmann; H. W. Kaufmann; Robert M. Jurga (2004). The medieval fortress: castles, forts and walled cities of the Middle Ages. Da Capo Press. p. 307. ISBN 978-0-306-81358-0.
  3. ^ Ward Bucher (1996). Dictionary of building preservation. Wiley-Interscience. pp. 43, 126, and 165. ISBN 978-0-471-14413-7.
